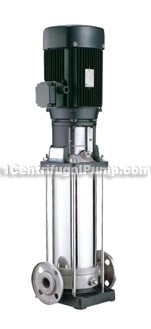

QDLF vertical stainless steel multi-stage centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram
QDLF vertical stainless steel multi-stage centrifugal pumps
introductions
CDL type stainless steel stamping multistage centrifugal pump is our factory integrates automobile industry cold extrusion technology and welding technology process three-dimensional pumps, pump adopts advanced manufacture technology of Denmark, this series hydraulic model is advanced, high efficiency and energy saving, internal pump impeller adopts stainless steel stamping forming, smooth flow, avoid to produce secondary pollution. Shaft seal is wear-resistant mechanical seal, no leakage. Motor adopts Y2 lead shells, imported bearing, insulation class F. Its overall and parts interchangeability is strong.
features
The series is divided into 8 kinds of specifications,. CDLF vertical multistage stainless steel centrifugal pump is the ideal green, environmental protection, energy saving water pump with smooth operation, low noise, reliable quality, beautiful appearance, small volume, light weight, easy installation. Flow: 2-80m3/h. maximum pump outlet pressure is 2.4Mpa, temperature is -20℃~150℃.
usages
Applicable to clean, hot and cold, non inflammable and non explosive, excluding solid particles or fiber liquids, such as medicine, food, drinks, boiler water, environment water treatment, living water pressurization, industrial water circulating system and processing system, etc media transport.
performance parameters
| type | flow | head (m) | efficiency (%) | rotate speed (r/min) | power (KW) | (NPSH)r | height (mm) | weight (Kg) | |
| m3/h | L/S | ||||||||
| 25QDLF2-20 | 2 | 0.56 | 15 | 46 | 2900 | 0.37 | 1.8 | 486 | 20 |
| 25QDLF2-30 | 2 | 0.56 | 22 | 46 | 2900 | 0.37 | 1.8 | 504 | 22.8 |
| 25QDLF2-40 | 2 | 0.56 | 30 | 46 | 2900 | 0.55 | 1.8 | 522 | 23.6 |
| 25QDLF2-50 | 2 | 0.56 | 37 | 46 | 2900 | 0.55 | 1.8 | 540 | 20 |
| 25QDLF2-60 | 2 | 0.56 | 45 | 46 | 2900 | 0.75 | 1.8 | 558 | 20 |
| 25QDLF2-70 | 2 | 0.56 | 52 | 46 | 2900 | 0.75 | 1.8 | 576 | 25 |
| 25QDLF2-80 | 2 | 0.56 | 60 | 46 | 2900 | 1.1 | 1.8 | 594 | 25 |
| 25QDLF2-90 | 2 | 0.56 | 67 | 46 | 2900 | 1.1 | 1.8 | 612 | 25 |
| 25QDLF2-100 | 2 | 0.56 | 75 | 46 | 2900 | 1.1 | 1.8 | 630 | 30 |
| 25QDLF2-110 | 2 | 0.56 | 82 | 46 | 2900 | 1.1 | 1.8 | 648 | 30 |
| 25QDLF2-120 | 2 | 0.56 | 90 | 46 | 2900 | 1.5 | 1.8 | 721 | 30 |
| 25QDLF2-130 | 2 | 0.56 | 97 | 46 | 2900 | 1.5 | 1.8 | 739 | 35 |
| 25QDLF2-140 | 2 | 0.56 | 105 | 46 | 2900 | 1.5 | 1.8 | 757 | 35 |
| 25QDLF2-150 | 2 | 0.56 | 112 | 46 | 2900 | 1.5 | 1.8 | 775 | 35 |
| 25QDLF2-160 | 2 | 0.56 | 120 | 46 | 2900 | 1.5 | 1.8 | 793 | 35 |
| 25QDLF2-170 | 2 | 0.56 | 127 | 46 | 2900 | 1.5 | 1.8 | 811 | 40 |
| 25QDLF2-180 | 2 | 0.56 | 135 | 46 | 2900 | 2.2 | 1.8 | 829 | 40 |
| 25QDLF2-190 | 2 | 0.56 | 142 | 46 | 2900 | 2.2 | 1.8 | 847 | 40 |
| 25QDLF2-200 | 2 | 0.56 | 150 | 46 | 2900 | 2.2 | 1.8 | 865 | 40 |
| 25QDLF2-210 | 2 | 0.56 | 157 | 46 | 2900 | 2.2 | 1.8 | 883 | 40 |
| 25QDLF2-220 | 2 | 0.56 | 165 | 46 | 2900 | 2.2 | 1.8 | 901 | 45 |
| 25QDLF2-230 | 2 | 0.56 | 172 | 46 | 2900 | 3 | 1.8 | 989 | 45 |
| 25QDLF2-240 | 2 | 0.56 | 180 | 46 | 2900 | 3 | 1.8 | 1007 | 45 |
| 25QDLF2-250 | 2 | 0.56 | 187 | 46 | 2900 | 3 | 1.8 | 1025 | 50 |
| 25QDLF2-260 | 2 | 0.56 | 195 | 46 | 2900 | 3 | 1.8 | 1043 | 50 |
| 32QDLF4-20 | 4 | 1.11 | 16 | 59 | 2900 | 0.37 | 1.8 | 501 | 20 |
| 32QDLF4-30 | 4 | 1.11 | 24 | 59 | 2900 | 0.55 | 1.8 | 528 | 20 |
| 32QDLF4-40 | 4 | 1.11 | 32 | 59 | 2900 | 0.75 | 1.8 | 555 | 20 |
| 32QDLF4-50 | 4 | 1.11 | 40 | 59 | 2900 | 1.1 | 1.8 | 582 | 20 |
| 32QDLF4-60 | 4 | 1.11 | 48 | 59 | 2900 | 1.1 | 1.8 | 609 | 20 |
| 32QDLF4-70 | 4 | 1.11 | 56 | 59 | 2900 | 1.5 | 1.8 | 691 | 25 |
| 32QDLF4-80 | 4 | 1.11 | 64 | 59 | 2900 | 1.5 | 1.8 | 718 | 25 |
| 32QDLF4-90 | 4 | 1.11 | 72 | 59 | 2900 | 2.2 | 1.8 | 745 | 30 |
| 32QDLF4-100 | 4 | 1.11 | 80 | 59 | 2900 | 2.2 | 1.8 | 772 | 30 |
| 32QDLF4-110 | 4 | 1.11 | 88 | 59 | 2900 | 2.2 | 1.8 | 799 | 30 |
| 32QDLF4-120 | 4 | 1.11 | 96 | 59 | 2900 | 2.2 | 1.8 | 826 | 30 |
| 32QDLF4-130 | 4 | 1.11 | 104 | 59 | 2900 | 3 | 1.8 | 923 | 35 |
| 32QDLF4-140 | 4 | 1.11 | 112 | 59 | 2900 | 3 | 1.8 | 950 | 35 |
| 32QDLF4-150 | 4 | 1.11 | 120 | 59 | 2900 | 3 | 1.8 | 977 | 46.5 |
| 32QDLF4-160 | 4 | 1.11 | 128 | 59 | 2900 | 3 | 1.8 | 1004 | 35 |
| 32QDLF4-170 | 4 | 1.11 | 136 | 59 | 2900 | 4 | 1.8 | 1066 | 40 |
| 32QDLF4-180 | 4 | 1.11 | 144 | 59 | 2900 | 4 | 1.8 | 1093 | 40 |
| 32QDLF4-190 | 4 | 1.11 | 152 | 59 | 2900 | 4 | 1.8 | 1120 | 40 |
| 32QDLF4-200 | 4 | 1.11 | 160 | 59 | 2900 | 4 | 1.8 | 1147 | 40 |
| 32QDLF4-210 | 4 | 1.11 | 168 | 59 | 2900 | 4 | 1.8 | 1174 | 45 |
| 32QDLF4-220 | 4 | 1.11 | 176 | 59 | 2900 | 4 | 1.8 | 1201 | 45 |
| 40QDLF8-20 | 8 | 2.22 | 18 | 64 | 2900 | 0.75 | 2.3 | 595 | 25 |
| 40QDLF8-30 | 8 | 2.22 | 27 | 64 | 2900 | 1.1 | 2.3 | 625 | 30 |
| 40QDLF8-40 | 8 | 2.22 | 36 | 64 | 2900 | 1.5 | 2.3 | 710 | 30 |
| 40QDLF8-50 | 8 | 2.22 | 45 | 64 | 2900 | 2.2 | 2.3 | 740 | 40 |
| 40QDLF8-60 | 8 | 2.22 | 54 | 64 | 2900 | 2.2 | 2.3 | 770 | 40 |
| 40QDLF8-70 | 8 | 2.22 | 63 | 64 | 2900 | 3 | 2.3 | 870 | 45 |
| 40QDLF8-80 | 8 | 2.22 | 72 | 64 | 2900 | 3 | 2.3 | 900 | 45 |
| 40QDLF8-90 | 8 | 2.22 | 81 | 64 | 2900 | 4 | 2.3 | 965 | 55 |
| 40QDLF8-100 | 8 | 2.22 | 90 | 64 | 2900 | 4 | 2.3 | 995 | 55 |
| 40QDLF8-110 | 8 | 2.22 | 99 | 64 | 2900 | 4 | 2.3 | 1025 | 55 |
| 40QDLF8-120 | 8 | 2.22 | 108 | 64 | 2900 | 4 | 2.3 | 1055 | 55 |
| 40QDLF8-130 | 8 | 2.22 | 117 | 64 | 2900 | 5.5 | 2.3 | 1125 | 80 |
| 40QDLF8-140 | 8 | 2.22 | 126 | 64 | 2900 | 5.5 | 2.3 | 1155 | 80 |
| 40QDLF8-150 | 8 | 2.22 | 135 | 64 | 2900 | 5.5 | 2.3 | 1185 | 80 |
| 40QDLF8-160 | 8 | 2.22 | 144 | 64 | 2900 | 5.5 | 2.3 | 1215 | 80 |
| 40QDLF8-170 | 8 | 2.22 | 153 | 64 | 2900 | 7.5 | 2.3 | 1245 | 86 |
| 40QDLF8-180 | 8 | 2.22 | 162 | 64 | 2900 | 7.5 | 2.3 | 1275 | 90 |
| 40QDLF8-190 | 8 | 2.22 | 171 | 64 | 2900 | 7.5 | 2.3 | 1305 | 90 |
| 40QDLF8-200 | 8 | 2.22 | 180 | 64 | 2900 | 7.5 | 2.3 | 1335 | 95 |
| 50QDLF16-20 | 16 | 4.44 | 22 | 71 | 2900 | 2.2 | 4.2 | 680 | 40 |
| 50QDLF16-30 | 16 | 4.44 | 34 | 71 | 2900 | 3 | 4.2 | 795 | 50 |
| 50QDLF16-40 | 16 | 4.44 | 46 | 71 | 2900 | 4 | 4.2 | 875 | 55 |
| 50QDLF16-50 | 16 | 4.44 | 58 | 71 | 2900 | 5.5 | 4.2 | 960 | 70 |
| 50QDLF16-60 | 16 | 4.44 | 70 | 71 | 2900 | 5.5 | 4.2 | 1005 | 75 |
| 50QDLF16-70 | 16 | 4.44 | 82 | 71 | 2900 | 7.5 | 4.2 | 1050 | 80 |
| 50QDLF16-80 | 16 | 4.44 | 94 | 71 | 2900 | 7.5 | 4.2 | 1095 | 80 |
| 50QDLF16-90 | 16 | 4.44 | 106 | 71 | 2900 | 11 | 4.2 | 1290 | 140 |
| 50QDLF16-100 | 16 | 4.44 | 118 | 71 | 2900 | 11 | 4.2 | 1335 | 140 |
| 50QDLF16-110 | 16 | 4.44 | 130 | 71 | 2900 | 11 | 4.2 | 1380 | 145 |
| 50QDLF16-120 | 16 | 4.44 | 142 | 71 | 2900 | 11 | 4.2 | 1425 | 145 |
| 50QDLF16-130 | 16 | 4.44 | 154 | 71 | 2900 | 15 | 4.2 | 1470 | 165 |
| 50QDLF16-140 | 16 | 4.44 | 166 | 71 | 2900 | 15 | 4.2 | 1515 | 165 |
